Debugging workflows

Learn more about how to work with Knock's workflow debugger and API logs to easily debug your notification workflows.

Sometimes you'll encounter issues with a workflow run that require more visibility into the Knock engine. Knock comes pre-built with a powerful workflow debugger that you can use to understand the state of individual workflow runs.

Using the workflow debugger, you can answer questions such as:

  • What messages did this workflow run generate?
  • Why did this step not produce any messages?
  • Did this recipient have preferences set that opted them out from receiving a notification?
  • What prevented this step from executing?

You can see a video of our workflow debugger in action here:

Accessing the workflow debugger

⚠️
Data subject to retention policy enforcement. See the data retention docs for more details on how Knock enforces this policy.

You can access the workflow debugger from our "Logs" page, which you'll find in the left hand environment sidebar in the dashboard. From there:

  1. Find an API log that triggered a workflow run (hint: you can use the filters to find only workflow API requests)
  2. In the right hand panel, click the "Workflow runs" tab

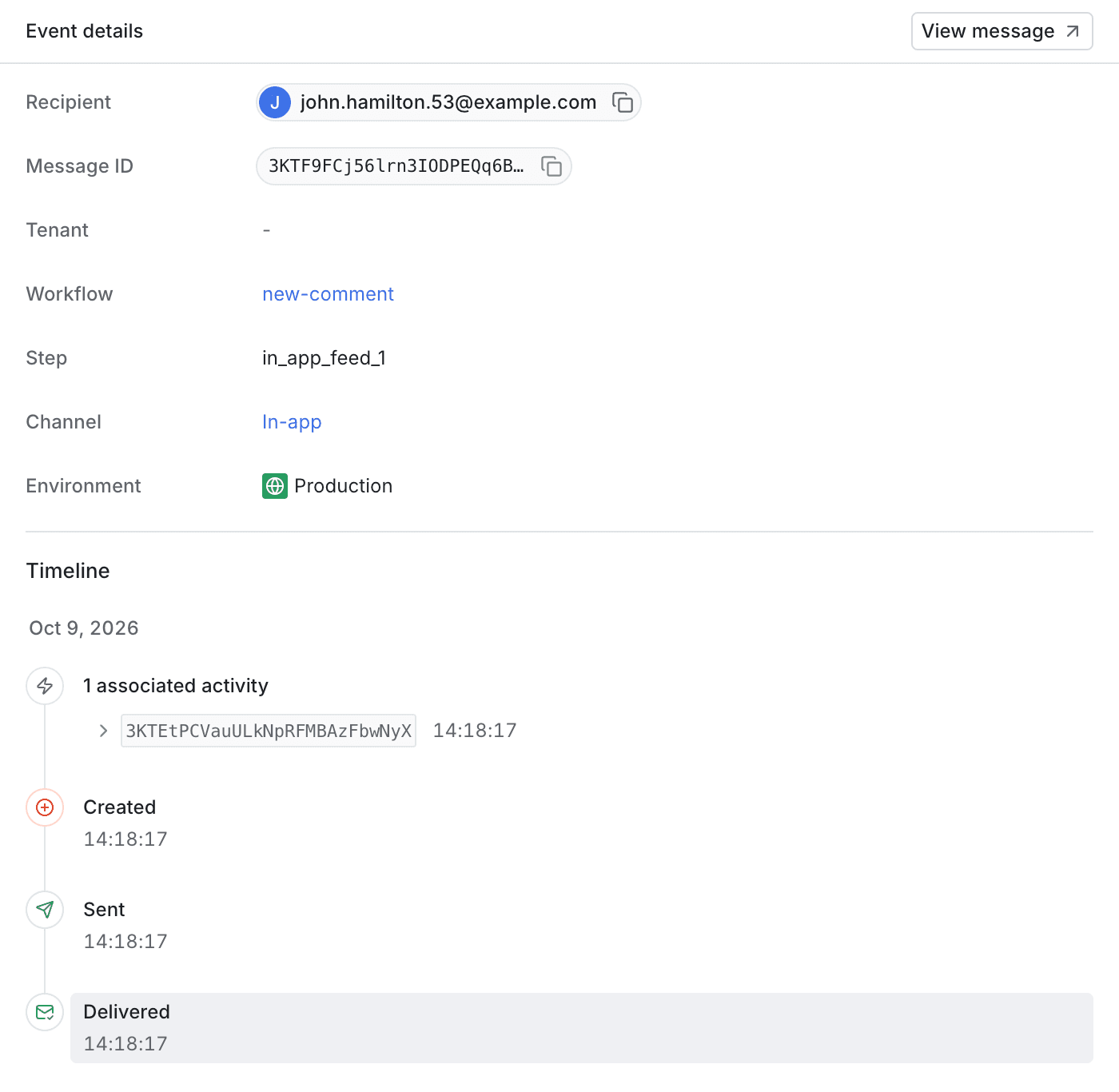

  3. Select a workflow run for any recipient to view the debugger

Note: you can also use the debugger to look at test runs as well.
