AI agent function

The AI agent function runs a prompt on an AI model of your choice and makes the response available in your workflow state. You can use it to enrich recipient data, personalize messaging, and bring AI-powered context into your messaging flows.

Common use cases include:

• Enriching recipient data. Use user and tenant properties (such as domain) to understand a recipient's market, use cases, and target persona.
• Personalizing messaging. Bring that context into your channel step templates to drive higher conversion rates.
• Summarizing batch content. Distill heterogeneous actions into a concise summary that reduces noise in digest notifications.

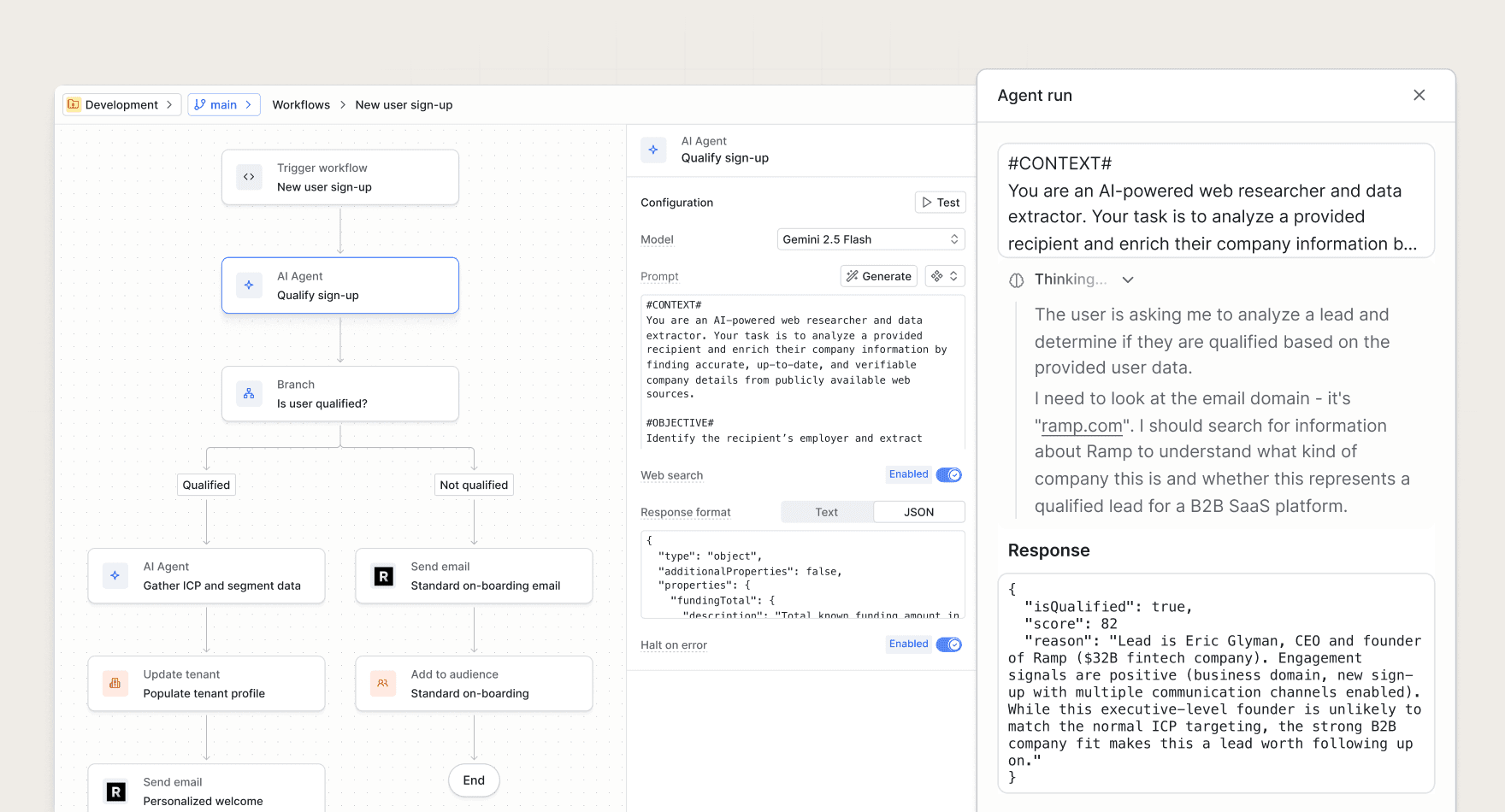

When a workflow run reaches an AI agent step, Knock:

1. Renders your prompt with the current workflow run scope (recipient, actor, tenant, data, etc.).
2. Sends the prompt to the AI model you've selected.
3. Adds the response to the workflow run data.

The response is stored as data.<step_ref>. You can reference this data in subsequent steps and templates.

Choose the AI model from the dropdown in the step configuration. The model you select affects both the quality of responses and the credit cost per step execution.

Generally we recommend using a faster, lightweight model for quick tasks (e.g. Haiku 4.5) and a more powerful model (e.g. Sonnet 4.5) for complex tasks.

The prompt field accepts Liquid syntax, so you can inject variable data from the workflow run scope. For example:

You can reference:

• recipient — The workflow run recipient.
• tenant — The tenant (i.e. company, organization, workspace) associated with the workflow run.
• data — The trigger payload passed to the workflow.
• actor — The user or system that triggered the workflow.
• vars — Your environment variables.

See the Knock template editor reference for more on working with Liquid in Knock.

By default, the AI agent returns a single string response available as data.<step_ref>.text.

You can set the response format to JSON when you need structured output for use in templates or branch steps. When using JSON format, you must supply a JSON schema for the shape of the data that you'd like the AI agent to fill in.

When web search is enabled, the agent can use a browser to crawl pages and gather information. This is useful for enriching data based on a recipient's domain or website amongst other research tasks.

Web search increases the credit cost of each step execution.

You can run test executions of your AI agent step from the workflow editor. Test runs do not consume credits.

1. Open the AI agent step in the workflow editor.
2. Click the test button next to the prompt field.
3. Specify the trigger parameters (actor, recipient, trigger data, tenant) for the test run.
4. Click Run test.

The test runner executes only the AI agent step in isolation. If your step expects data from a preceding step (such as a batch or fetch), include that data in the Data field when running the test.

AI agent function executions consume AI agent credits. Credits are used when the step successfully runs in a workflow. Test runs do not consume credits.

The credit cost per execution depends on:

• Model. Each model has a different credit cost per run.
• Web search. Enabled by default; adds credits per execution.
• Thinking. When enabled, adds credits for extended reasoning.

• Included credits. Your plan includes a set amount of credits per billing period. Credits do not roll over.
• Purchasing credits. When you need more, go to the Billing page in your account settings to purchase additional credits.
• Auto-purchase. You can configure a threshold and amount for automatic credit top-ups when your balance falls below a certain level.
• Running out of credits. When you run out of credits, AI agent steps halt. You can configure behavior when this happens (e.g. continue the workflow or stop the workflow).

Model	Tier	Credit cost
Claude Haiku 4.5	Budget	1 credit
OpenAI GPT-5.2 Instant	Budget	1 credit
Claude Sonnet 4.6	Balanced	8 credits
OpenAI GPT-5.2	Balanced	8 credits
Claude Opus 4.6	Power	12 credits
OpenAI GPT-5.2 Pro	Power	12 credits

When web search is enabled, the credit cost is increased by 10 credits per execution.

When an AI agent step fails (e.g. model error, timeout, or invalid response), Knock marks the step as failed. You can configure whether the workflow should halt or continue to the next step when an AI agent step fails using the "Halt on error" setting.

The AI agent step will retry up to 3 times for certain types of errors:

• Model errors. The model returns an error response.
• Timeout errors. The request takes longer than the model's timeout.
• Unexpected errors. The model returns an unexpected response.

Note: we will not retry when the model returns an error response or indicates that they could not fulfill the request.

You can use the workflow run logs to debug AI agent steps. For each AI agent step, the logs include:

• The rendered prompt sent to the model.
• The model response.
• The duration of the request.
• Any errors encountered.
